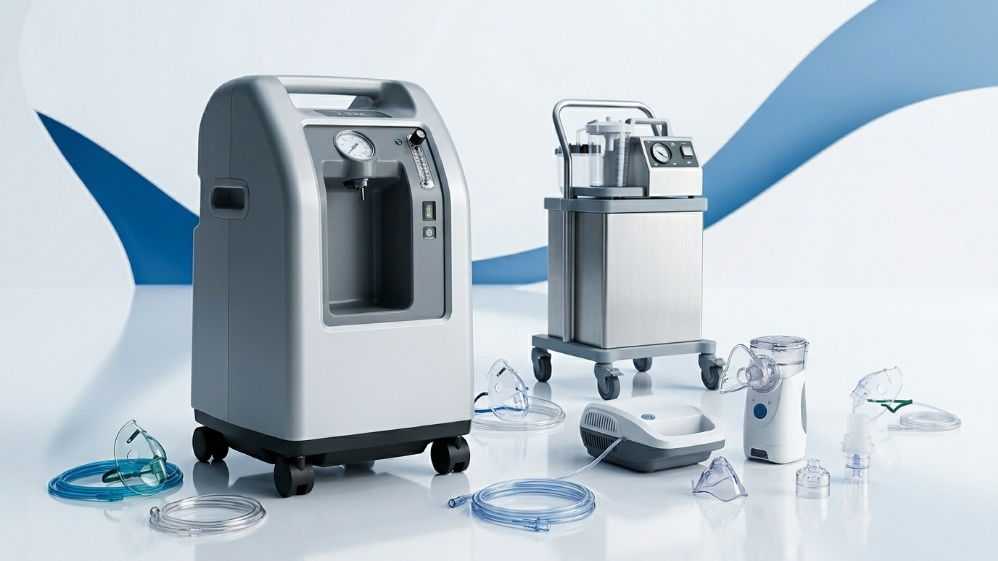

Respiratory Care & Suction Devices

- Model: 7E-A.

- Brand: Yuwell.

- Type: Portable phlegm suction machine (single bottle).

- Power Supply: AC 220V ±10%, 50Hz.

- Input Power: 90 VA.

- Max Negative Pressure: ≥ 0.075 MPa (≈ 760 mmHg).

- Adjustable Pressure Range: 0.02 MPa to maximum suction pressure.

- Suction Flow Rate: ≥ 15 L/min.

- Noise Level: ≤ 65 dB(A).

- Collection Bottle Capacity: 1000 mL (1 bottle).

- Weight: 4.4 kg.

- Dimensions: 280 × 196 × 285 mm.

- Pump Type: Oil-free piston pump.

- Price mentioned per machine

- Power: AC 220–230V 50 Hz.

- Maximum Negative Pressure: > 0.075 MPa.

- Pumping Flow Rate: > 18 L/min.

- Reservoir Volume: 1000 mL (1 bottle).

- Working System: 30 min ON, 30 min OFF duty cycle.

- Unit Size: Approx. 29.3 × 19.2 × 24.5 cm.

- Weight (Approx): 3.7 kg.

- Length: 150–200 mm (Approx.).

- Connector Size: 15 mm I.D. / 22 mm O.D. Standard Airway Connector.

- Connector Type: 22 mm Female Connector.

- Tubing Type: Flexible Corrugated Tube.

- Material: Medical-Grade PVC (Latex-Free).

- Port Type: Bronchoscopy Port.

- Sterility: Sterile – Single Use Disposable.

- Application: Ventilator & Anesthesia Breathing Circuits.

- Connection Size: 22 mm ID × 15 mm ID / 22 mm OD.

- Bacterial Filtration Efficiency: >99.999 %.

- Viral Filtration Efficiency: >99.99 %.

- Flow Resistance: ~1.5 cm H₂O at 60 L/min (low resistance to gas flow).

- Dead Space: ~42 mL.

- Filter Media: Non‑conductive, hydrophobic media for effective microbial filtration.

- Product Type: Endotracheal Tube (ET Tube).

- Tube Type: Cuffed.

- Material: Medical-grade transparent PVC.

- Sterility: Sterile, single-use.

- Tube Marking: Depth markings for accurate placement.

- Cuff Type: High-volume, low-pressure cuff.

- Tip Design: Smooth rounded atraumatic tip.

- Radiopaque Line: Yes.

- Size: Multiple sizes available (ID marked on tube).
